Mặt bích Ansi150, Ansi 300, Cao cổ

Flanges Ansi150, Ansi300, High Neck

Flanges Ansi150, Ansi300

ANSI 150 Steel Flange: ANSI B16.5 Lap Joint Flange Class 150 flange is a type of flange according to US standards used in connecting pipes, valves, pumps ... in drainage systems in key industries, high pressure.

ANSI 300 Steel Flange: ANSI B16.5 Lap Joint Flange Class 300 flange is a type of flange according to US standards used in connecting pipes, valves, pumps ... in drainage systems in key industries, high pressure.

High-neck flange: High-neck steel flange, also known as welding neck flange pipe, is widely used in locations with variable pipe pressure and temperature as well as in pipelines with extremely high or ultra-low temperatures, pipelines with high pressure, High-neck steel flange The long neck is welded with steel pipes, steel components have higher hardness than conventional steel flanges, are not easy to deform and have good welding properties, so they are often used for oil and gas projects, gas produced by casting method, so the price is low and the nominal pressure is less than 2.5 MPa.

Uses of flanges ANSI 150LB, ANSI 300LB, high neck

Electrical power, oil and gas, chemicals, shipbuilding, thermal equipment, papermaking, water supply and drainage systems, fire protection pipelines, food, etc.

Image:

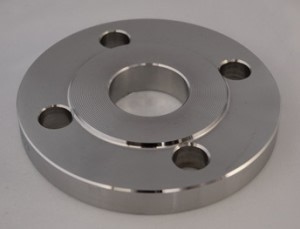

Ansi flange

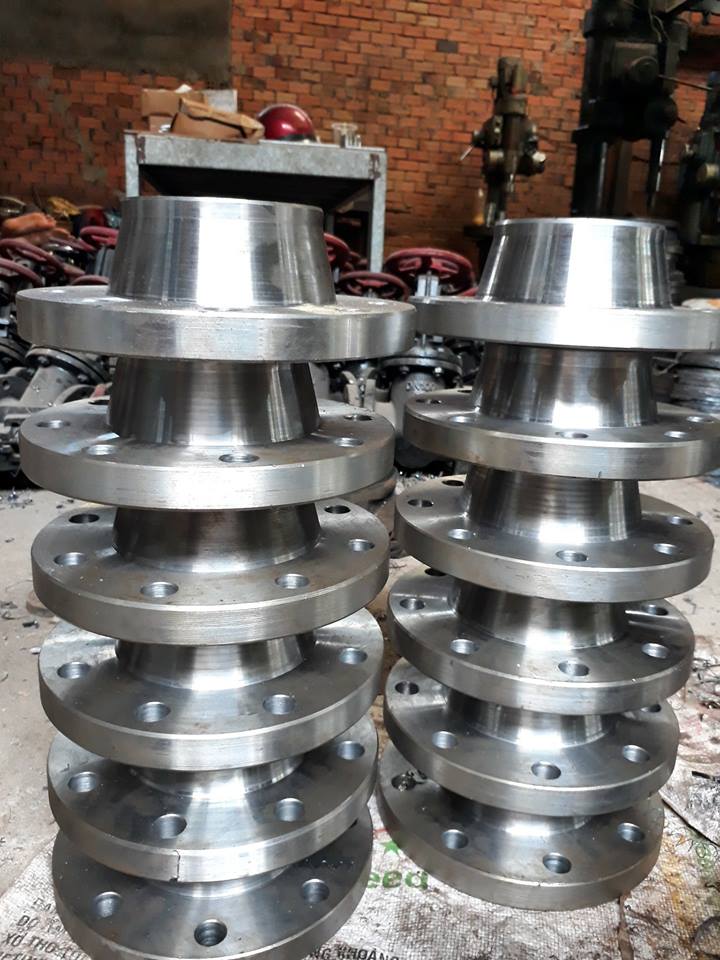

Turtleneck flange

Learn about ANSI 150LB Flange ANSI 300LB

Specification: DN15 to DN2000

Áp suất làm việc: 150LB-300LB

Vật Liệu: Thép carbon steel, SS400, Q235, A105, F304/L, F316/L

Xuất Xứ: Vietnam-China,etc.

Mô tả sản phẩm: Theo tiêu chuần ASTM/ANSI B16.9

Sử dụng: Năng lượng điện, dầu khí, hóa chất, đóng tầu, thiết bị nhiệt, làm giấy, hệ thống cấp thoát nước, đường ống pccc, thực phẩm, vv

Tìm Hiểu Về Mặt Bích Cổ Cao

Vật liệu thô
Thép không gỉ: A182 304-304H-304L-304N-304LN 316-316H-316L-316N-316LN 321-321H 347-347H Thép cacbon: A105
Thép hợp kim: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22
Thép lạnh: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
Thép chịu nhiệt: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70

Tiêu chuẩn
mặt bích thép cổ cao làm theo các tiêu chuẩn sau :.

SH/T3406-1996
GD2000 GD87-1101
JB/T74-1994 GB/T9112-2000
GB/T9115.1-2000 GB/T9115.2-2000 GB/T9115.3-2000 GB/T9115.4-2000
GB/T9124-2000
GB/T13402-1992 ,ASME B16.5-2009 ASME B16.47-2006
API605-1988, JB/T75-1994
JB/T82.1-1994 JB/T82.2-1994 JB/T82.3-1994 JB/T82.4-1994
HG/T20592-2009 HG/T20614-2009
HG/T20615-2009 HG/T20623-2009 HG/T20635-2009
MSS SP 44-2006
DIN2630 DIN2631 DIN2632 DIN2633 DIN2634 DIN2635 DIN2636 DIN2637 DIN2638
BS1560-3.1-1989 BS4504-3.1-1989
CSA Z245.12-05-2005
EN1092-1-2007 EN1759-1-2004
ISO7005-1-1992
AS2129-2000
AFNOR NF E29-200-1-2007
